Kingspan pre-insulated duct system.
Kingspan PalDuct and PIRALU are lightweight, thermally efficient pre-insulated duct systems — up to five times lighter than conventional GI ductwork, for easier handling and faster installation.
Local accredited
Fire-tested and SGBP-certified
≤0.023 W/mK
Declared thermal conductivity at 10 °C, depending on the selected panel
20–30 mm
Panel thickness options for different project requirements
4m × 1.2m
Standard panel dimensions
How it works
Air distribution and insulation in one construction.
Pre-insulated ductwork combines air distribution and thermal insulation within a single lightweight panel system. Unlike conventional GI ductwork, which requires a separate insulation stage, the insulation is already built into the duct panel.
Each duct section is fabricated from rigid PIR panels faced on both sides with aluminium. The panels are cut, grooved, folded and sealed to form the required duct dimensions and fittings.

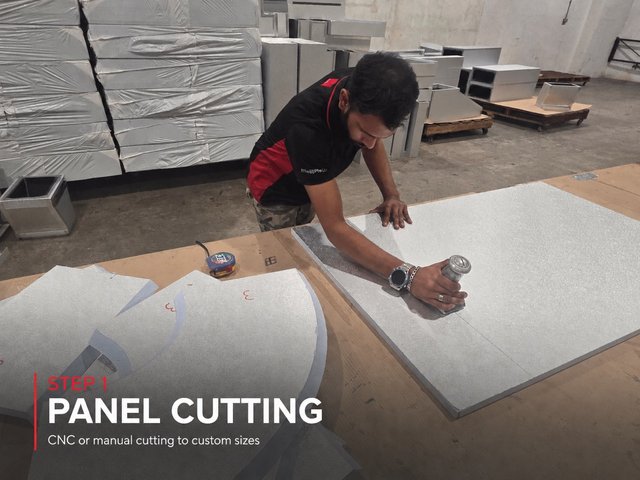

01
Panels are measured and cut
The PIR panels are measured, cut and grooved according to the approved duct dimensions and project drawings.
02

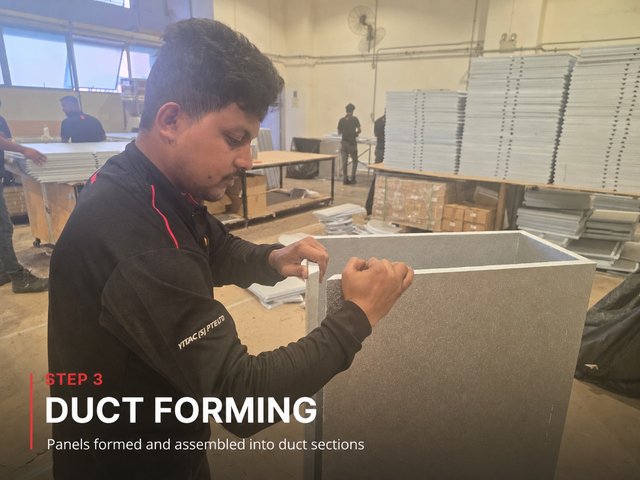

Duct sections are formed
The prepared panels are folded and assembled to create straight ducts, bends, transitions and other required fittings.

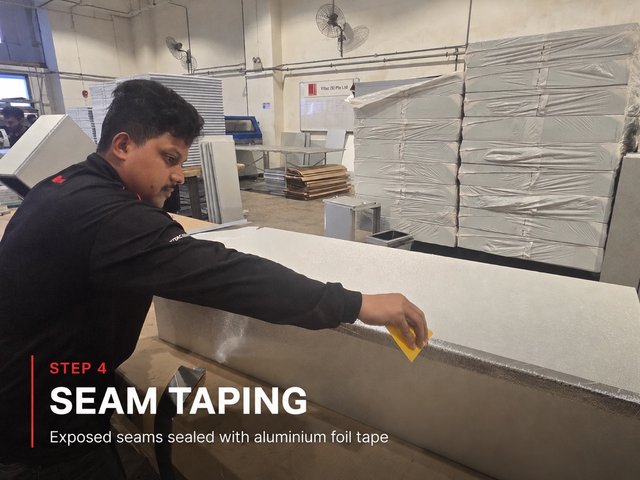

03

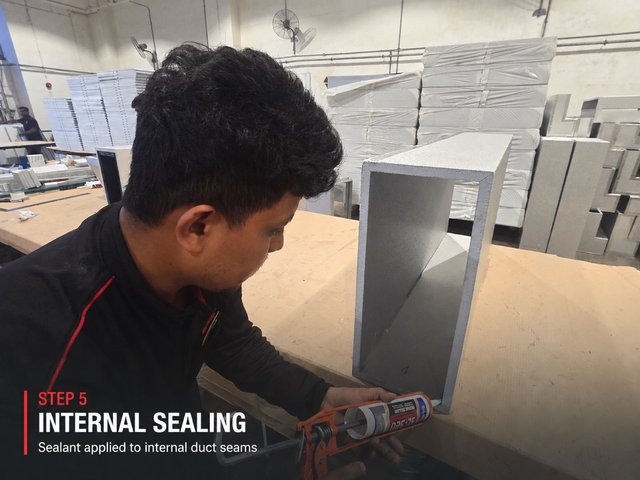

Joints are sealed

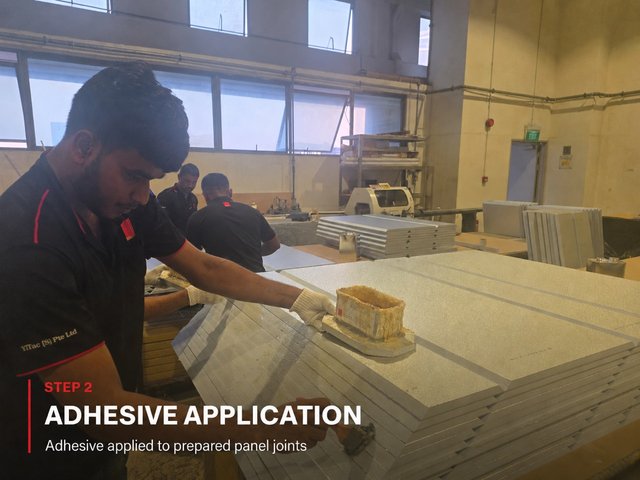

Profiles, connectors, adhesive, sealant and aluminium tape are used to join the sections and provide a secure, well-sealed duct system.
04
The ductwork is installed
The completed sections are suspended and connected to the ACMV equipment to distribute supply, return or fresh air throughout the building.

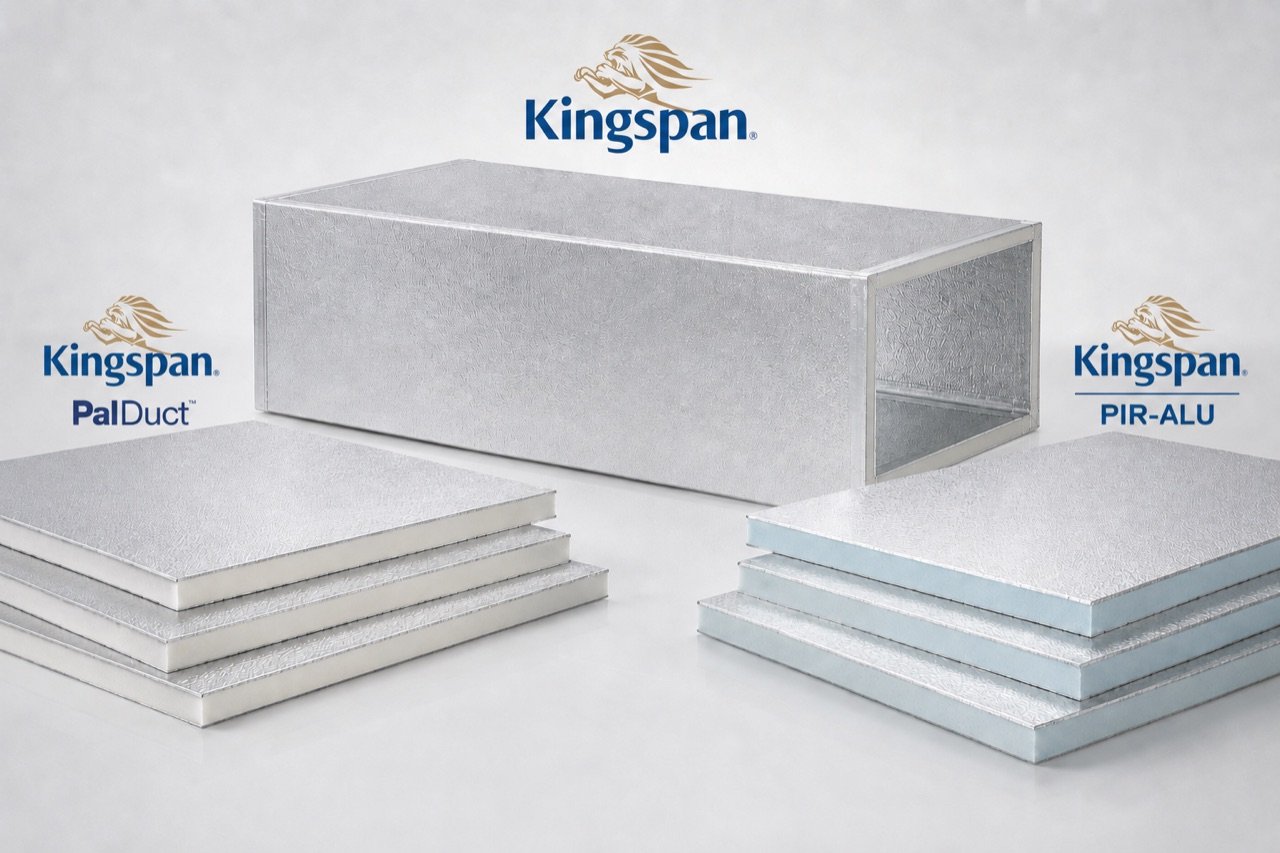

From panel to finished duct
Each duct section is precision-cut, bonded, formed and sealed to create lightweight, insulated and airtight ductwork. Select any photograph to open it at full size.
Benefits
Pre-insulated duct system benefits.
- High thermal efficiency.
- Up to five times lighter than GI ductwork.
- Faster and easier installation.
- No additional insulation requirement.
- Reduced labour and site congestion.
- Moisture-resistant PIR construction.
- Low air leakage through sealed joints.
- Clean finishing with easy modification.
Kingspan PalDuct
A lightweight, thermally efficient pre-insulated duct system with a PIR core density of 45 kg/m³, designed for internal ACMV air distribution.
Kingspan PIRALU
A lightweight pre-insulated duct system with a PIR core density of 35 kg/m³, featuring antimicrobial-treated foil surfaces, designed for internal ACMV air distribution.

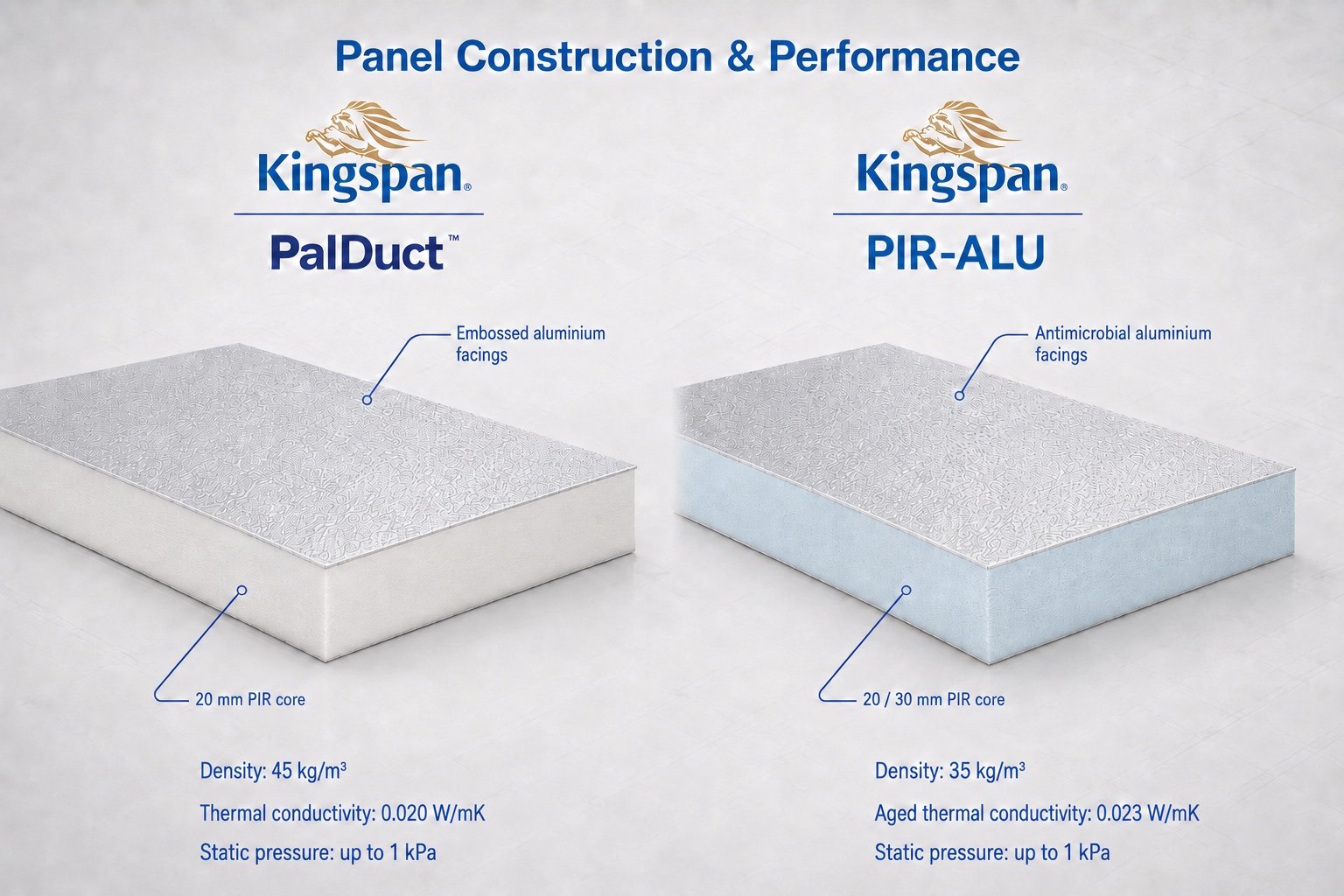

Technical characteristics
Two panel systems, selected to suit the project.
Both systems use aluminium-faced rigid PIR panels, but the final selection should be based on the required thermal performance, installation conditions, certification requirements and project specifications.
- Construction
- PIR core with aluminium facings
- Air services
- Supply, return and fresh air
- PalDuct
- 45 kg/m³; 20 mm; 0.020 W/mK
- PIRALU
- 35 kg/m³; 20/30 mm; 0.023 W/mK
- Moisture protection
- Closed-cell core with vapour barrier
- Certification
- Fire-tested and SGBP-certified
Panel take-off, fitting schedules and full technical data are issued on enquiry rather than published. Request the data sheet.
Accessories
The same accessory set covers both panel systems, so a site is not carrying two inventories.
- F profile, aluminium.
- H profile, aluminium.
- U profile, aluminium.
- Corner piece.
- Tiger connector.
- Silicone sealant.
- Panel glue.
- Aluminium duct tape.
- Panel tool box.
Applications
Where pre-insulated ductwork is used.
Pre-insulated duct systems are suitable for new construction, renovation and A&A projects across a wide range of building types.
Commercial & residential
- Offices and retail developments
- Hotels and serviced apartments
- Condominiums and mixed-use buildings
Institutional & specialist
- Schools and healthcare facilities
- Public buildings and attractions
- Dry laboratories and data centres
Industrial & retrofit
- Factories and production facilities
- Warehouses and workshops
- Renovation and A&A projects

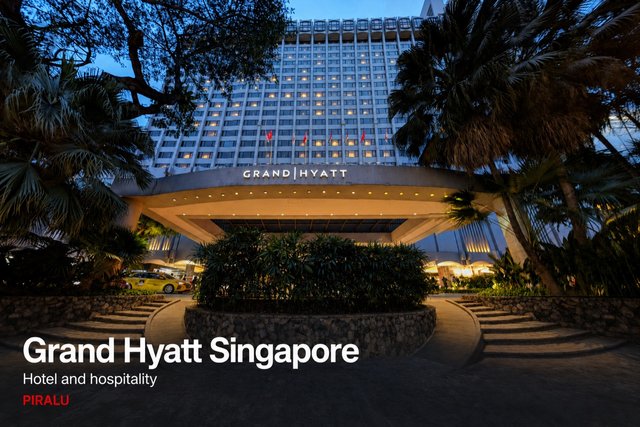

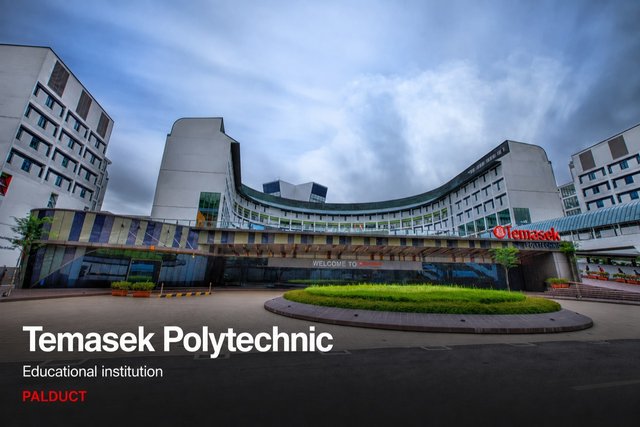

Project references

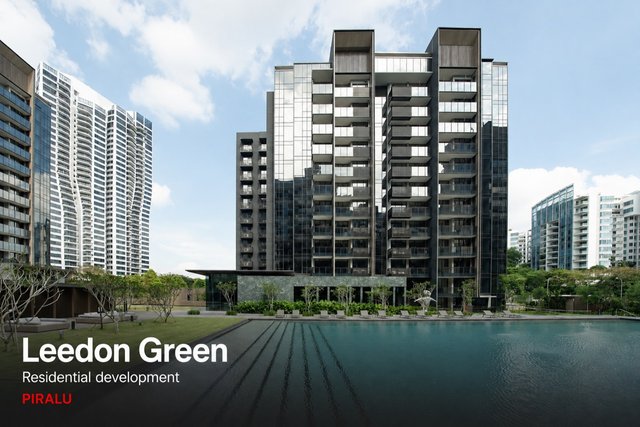

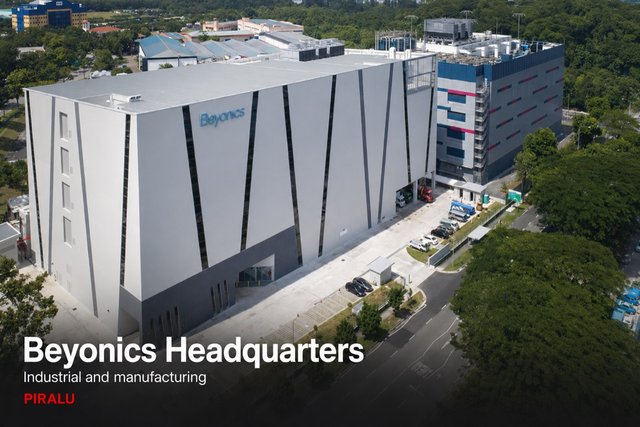

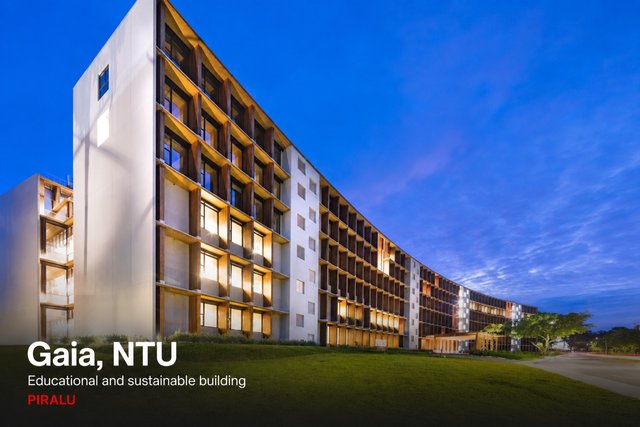

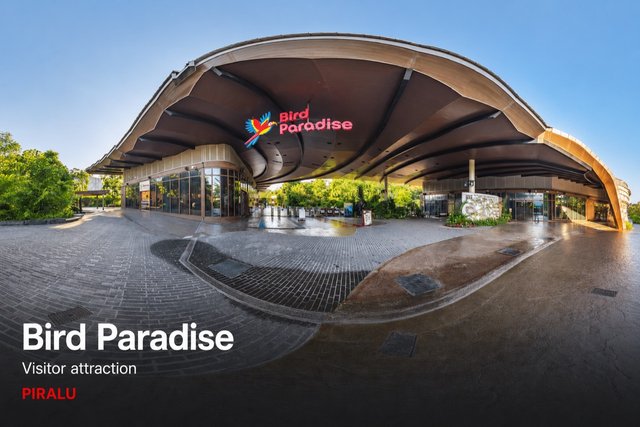

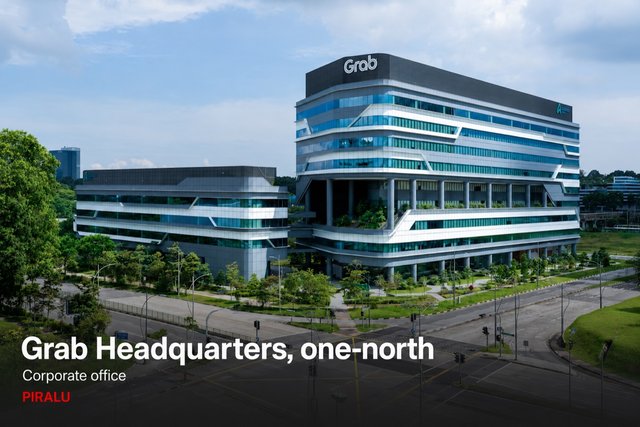

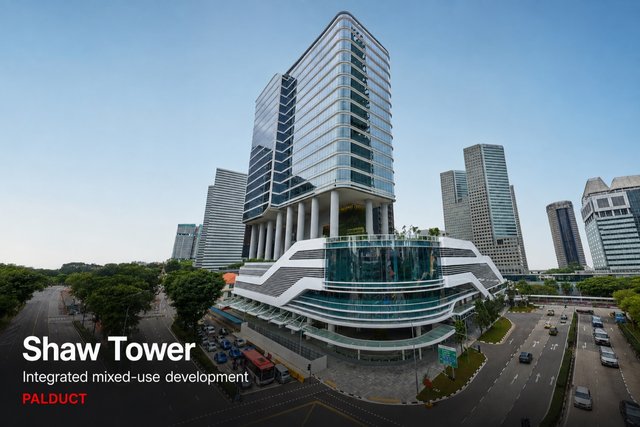

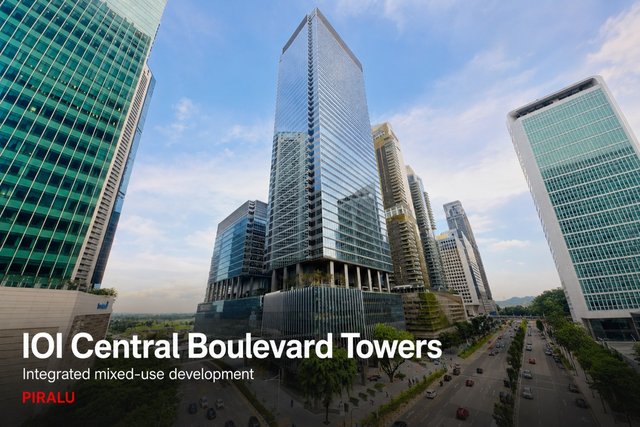

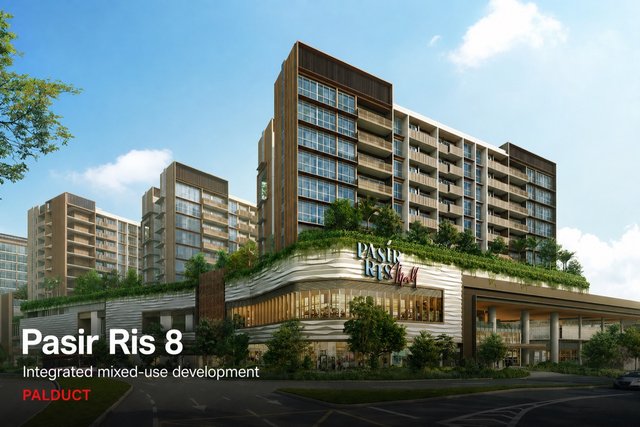

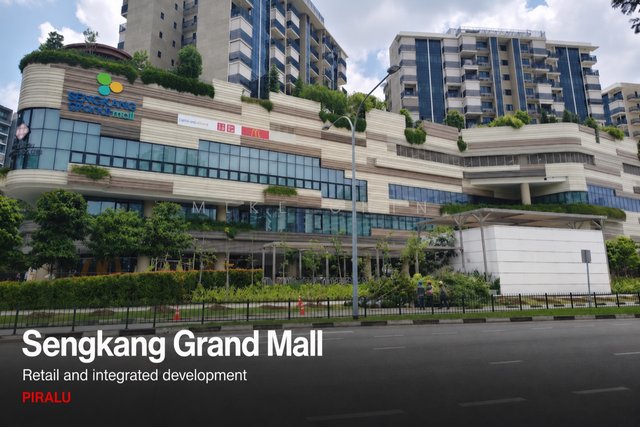

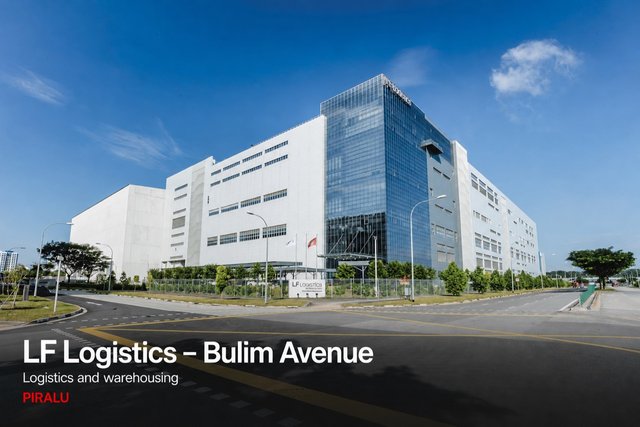

Buildings across Singapore fitted with PalDuct or PIRALU ductwork. Select any photograph to open it at full size.
Certified
Fire-tested to SCDF requirements and SGBP-certified, fabricated in YITAC's own workshop
Downloads
Catalogue and certification.
Connected work
Where duct fits the wider system.
Service
Energy Audit & OSE
Air distribution inspected against design intent as part of the assessment.
View serviceSend us the duct schedule and we will quote the panel take-off.
